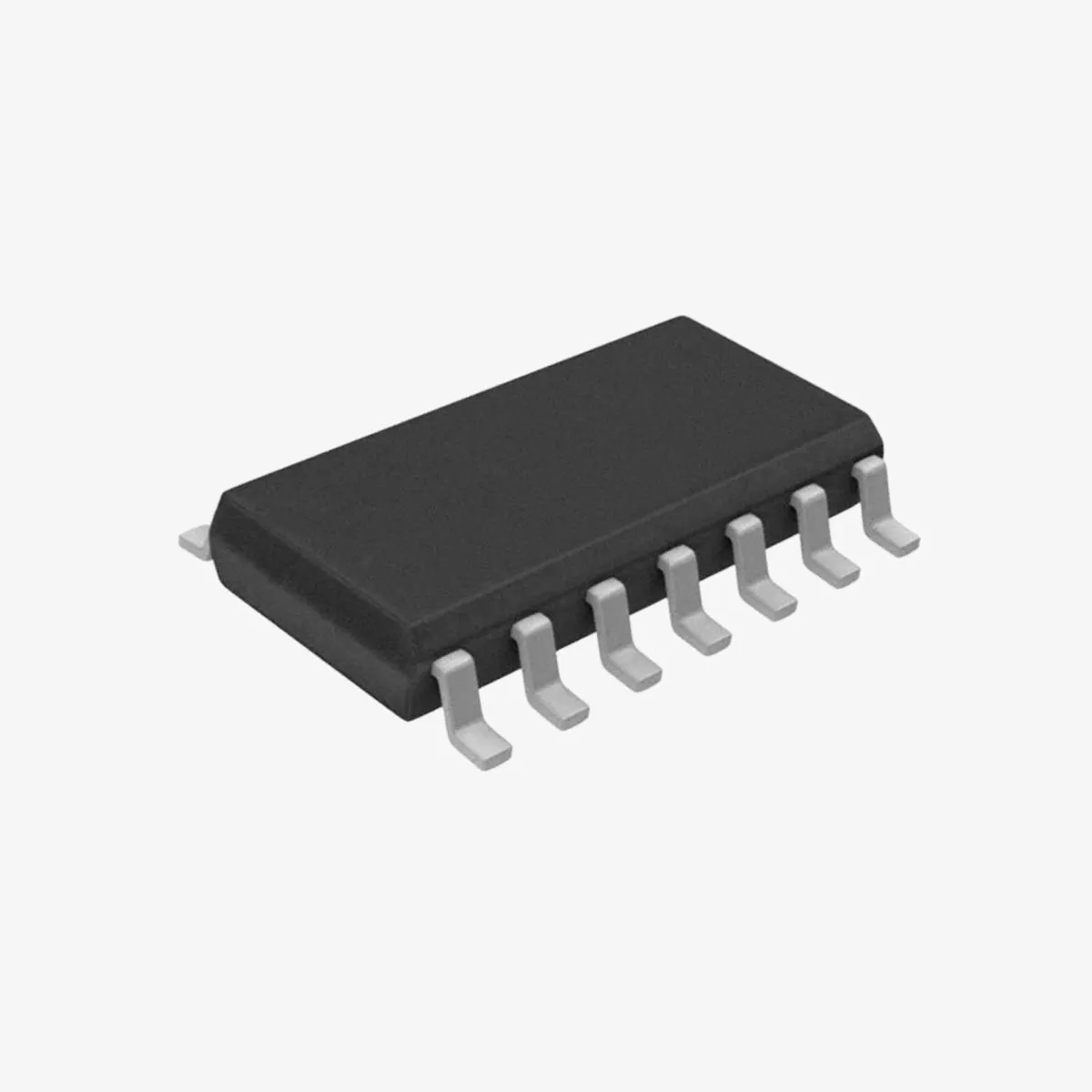

The 74HC04 is a high-speed CMOS Hex Inverter IC designed for a wide range of digital logic applications. It is housed in a compact SOIC-14 surface-mount device (SMD) package, making it suitable for high-density circuit board layouts. Here’s a detailed description of the product:

Key Features:

• Type: Hex Inverter
• Package: SOIC-14 (Small Outline Integrated Circuit)
• Logic Family: 74HC (High-Speed CMOS)
• Operating Voltage: 2V to 6V
• Low Power Consumption: CMOS technology ensures low static power consumption
• High-Speed Operation: Fast propagation delay
• Wide Operating Temperature Range: -40°C to 85°C

Applications:

• Digital Logic Circuits: Ideal for general-purpose digital logic applications
• Signal Processing: Useful in signal processing and data manipulation
• Control Systems: Suitable for control systems and automation
• Embedded Systems: Commonly used in embedded systems and microcontroller interfacing
• Computing: Can be used in computing and arithmetic logic operations

Pin Configuration:

• Pin 1 (1A): Input of Inverter 1
• Pin 2 (1Y): Output of Inverter 1
• Pin 3 (2A): Input of Inverter 2
• Pin 4 (2Y): Output of Inverter 2
• Pin 5 (3A): Input of Inverter 3
• Pin 6 (3Y): Output of Inverter 3
• Pin 7 (GND): Ground
• Pin 8 (4Y): Output of Inverter 4
• Pin 9 (4A): Input of Inverter 4
• Pin 10 (5Y): Output of Inverter 5
• Pin 11 (5A): Input of Inverter 5
• Pin 12 (6Y): Output of Inverter 6
• Pin 13 (6A): Input of Inverter 6
• Pin 14 (VCC): Supply voltage

Electrical Characteristics:

• Supply Voltage (Vcc): 2V to 6V
• Input Voltage (Vin): 0V to Vcc
• Output Voltage (Vout): 0V to Vcc
• Low Input Current (Iin): ±1μA max
• Low Output Current (Iout): ±25mA max
• Propagation Delay: Typically 8ns at Vcc = 5V
• Power Consumption: Low power consumption due to CMOS technology

Note: Product images are for illustrative purposes only and may differ from the actual product.
